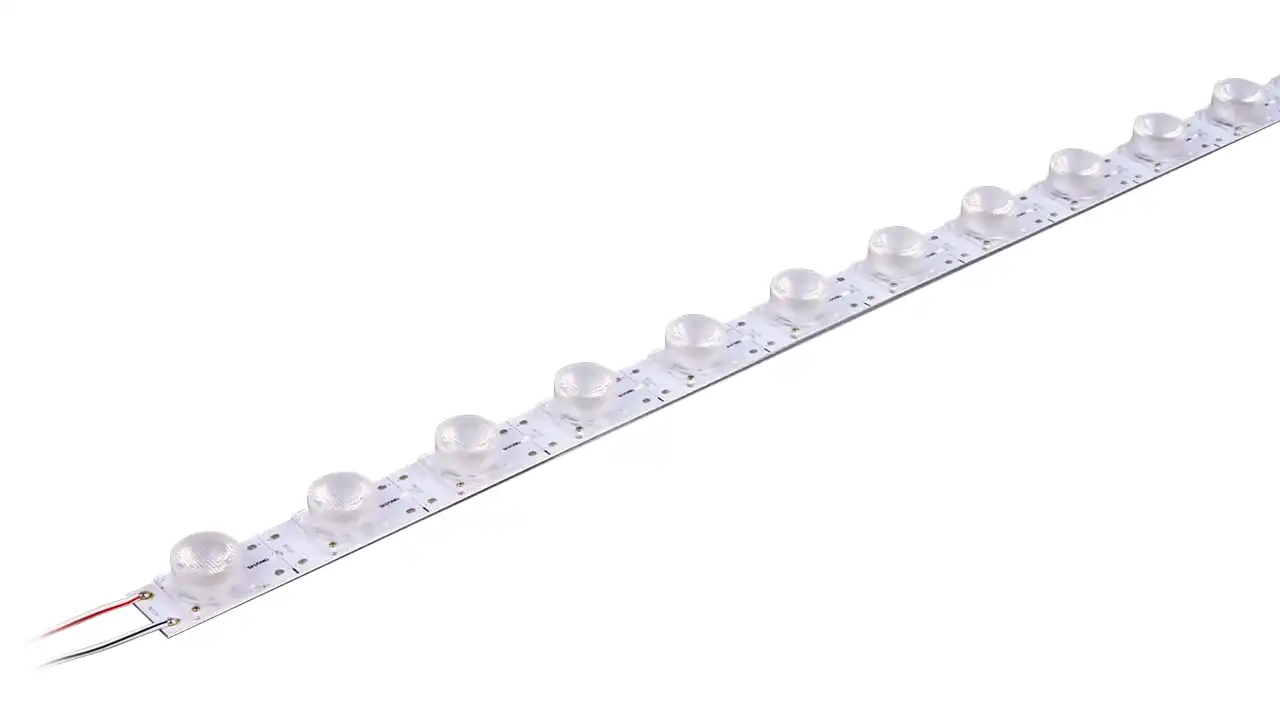

- Model: DT-C-12A
- V DC: 12V/24V
- CT: 3000-11000K
- Lamp bead: SMD3030-dome
- LEDs: 18 pcs
- Power: 23W
- Angle: 10*45°
- Level: IP20
- Warranty: ＞2 years
- Size: 960*20*12MM
- Suitable for: 1M-1.5M distance light box

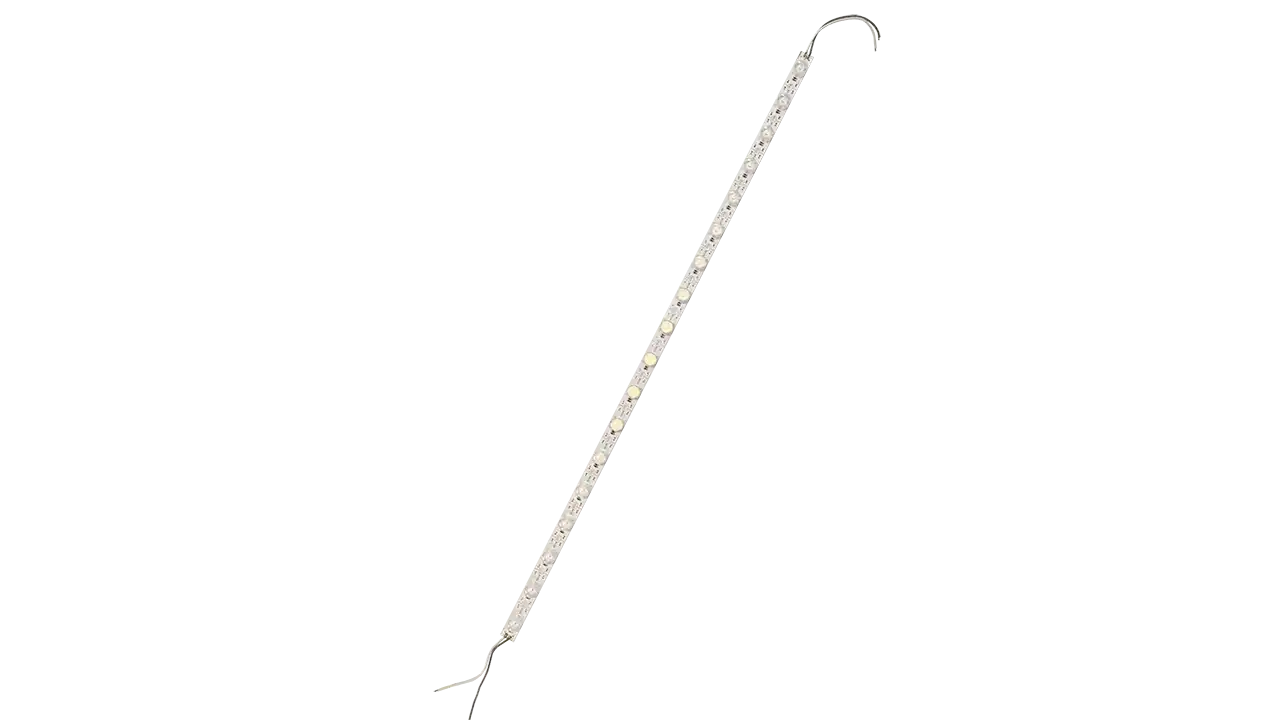

- Model: DT-C-12B
- V DC: 12V
- CT: 11000K
- Lamp bead: SMD2835
- LEDs: 18 pcs
- Power: 23W
- Angle: 10*45°
- Level: IP20
- Warranty: ＞3 years
- Size: 960*25*15MM
- Suitable for: 1M-1.5M distance light box

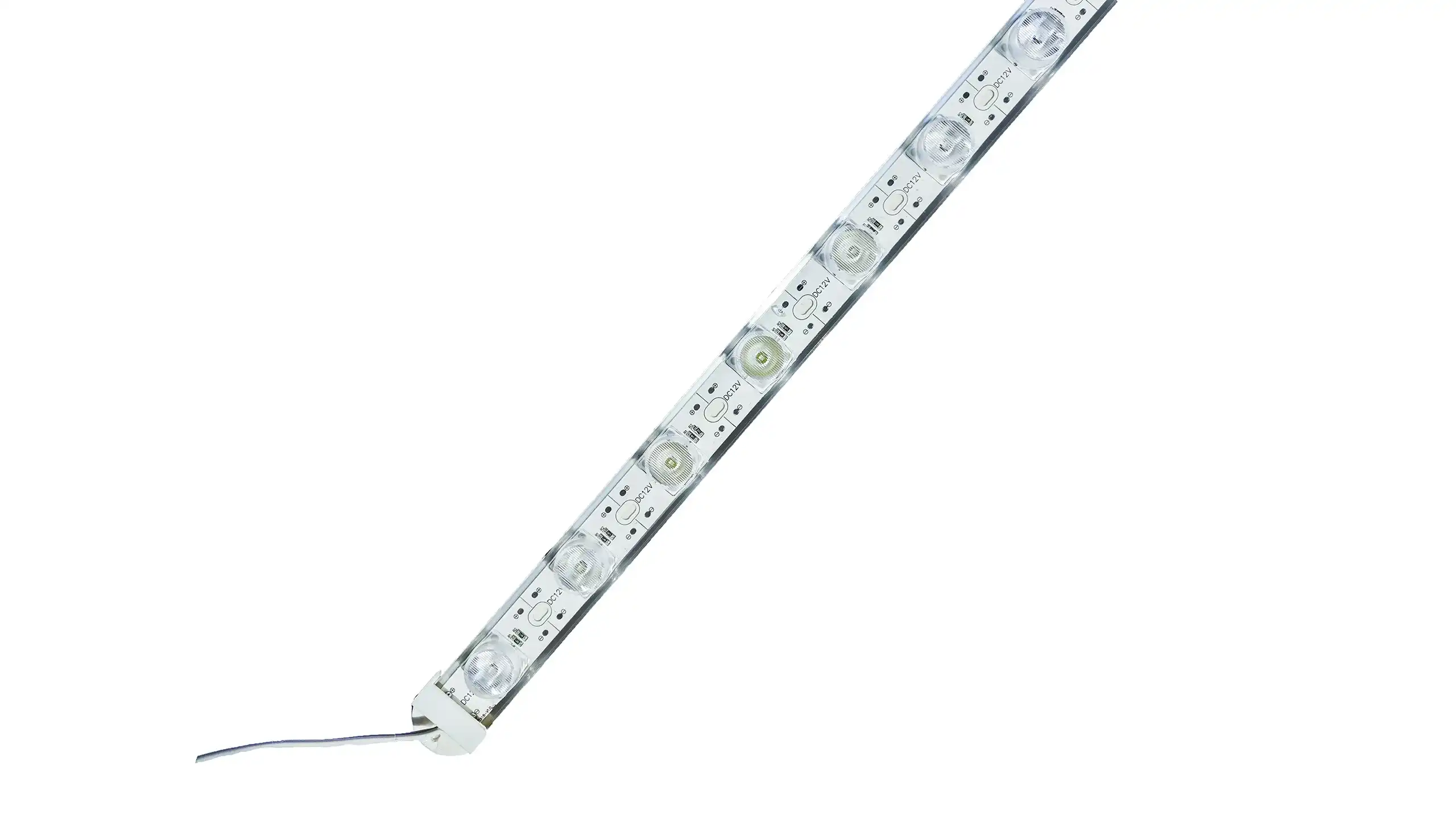

- Model: DT-C-12AF
- V DC: 12V/24V
- CT: 3000-11000K
- Lamp bead: SMD3030-dome
- LEDs: 18 pcs
- Power: 27W
- Angle: 10*45°
- Level: IP65
- Warranty: ＞3 years
- Size: 1000*28*16MM
- Suitable for: 1M-1.5M distance light box

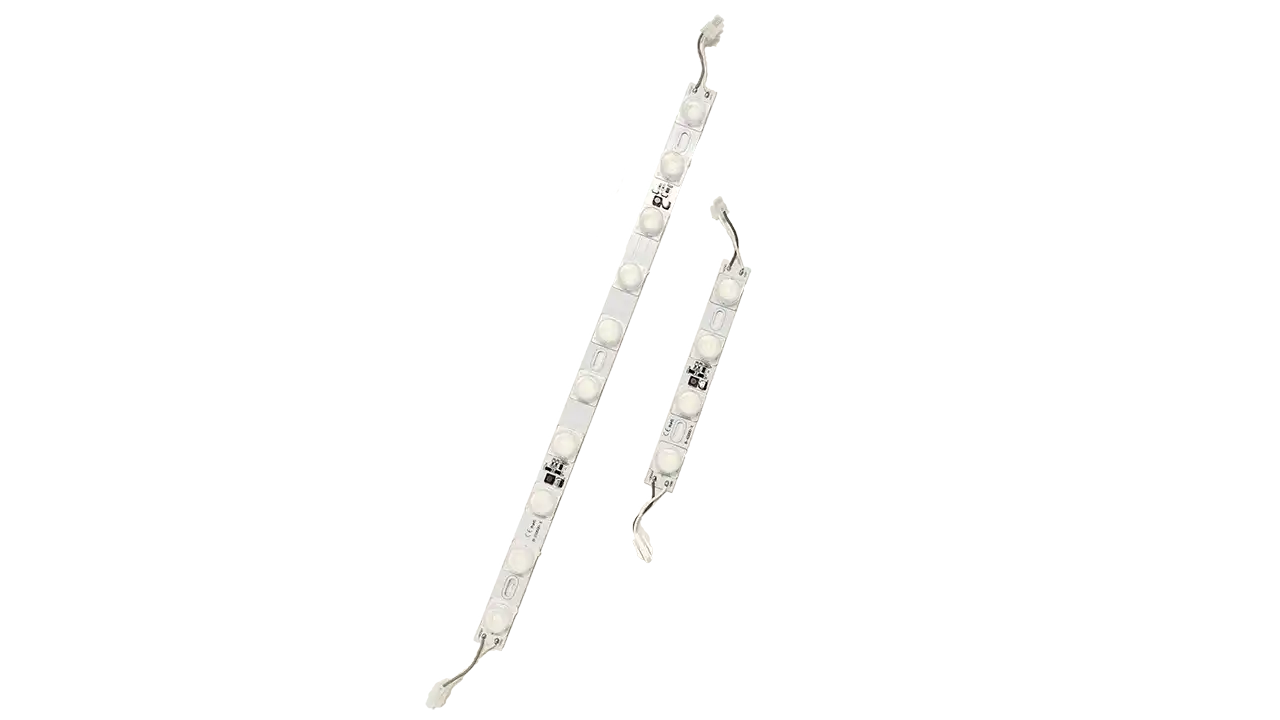

- Model: DT-C-24C/D
- V DC: 24V
- CT: 6500K
- Lamp bead: OSRAM 3535
- LEDs: 10/4 pcs
- Power: 25W/10W
- Angle: 10*30°
- Level: IP20
- Warranty: ＞3 years
- Size: 500/200*25*14MM
- Suitable for: Minimum depth: 120MM, LEN: 2M

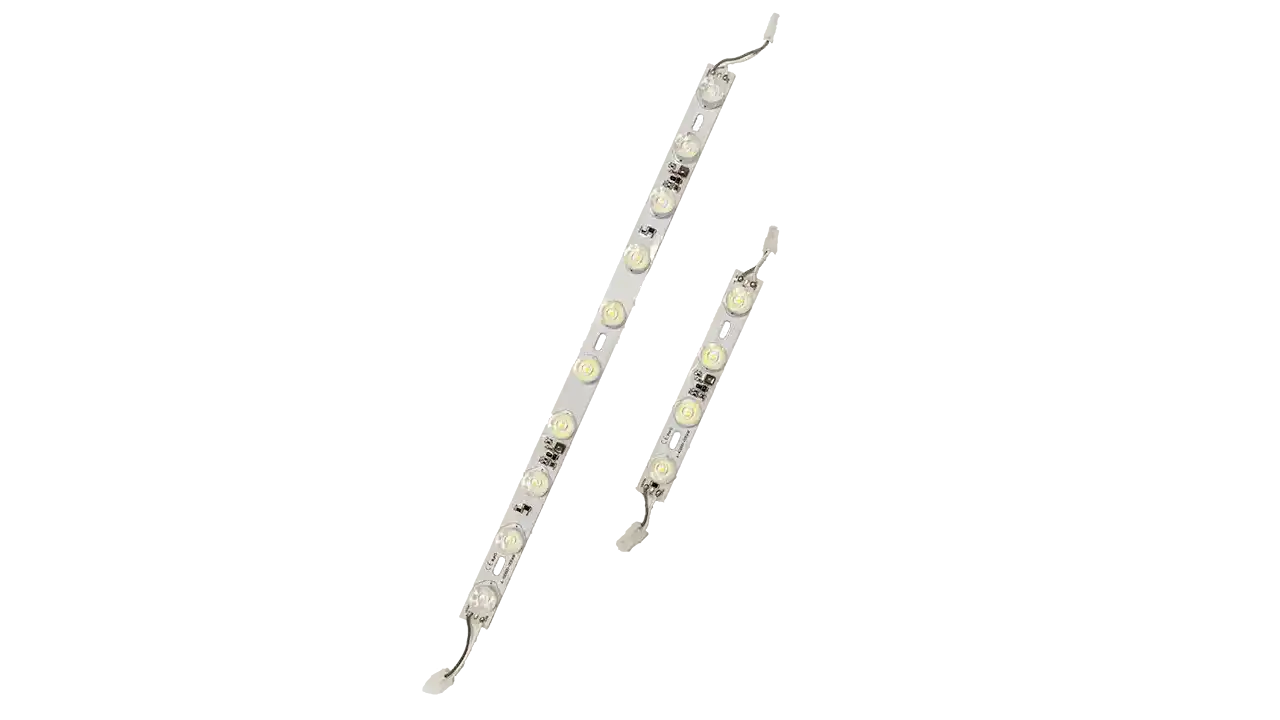

- Model: DT-C-24A/B
- V DC: 24V
- CT: 6500K
- Lamp bead: OSRAM 3535
- LEDs: 10/4 pcs
- Power: 35W/14W
- Angle: 10*30°
- Level: IP20
- Warranty: ＞3 years
- Size: 500/200*25*14MM
- Suitable for: Min-depth: 120MM, LEN: 2M-4M

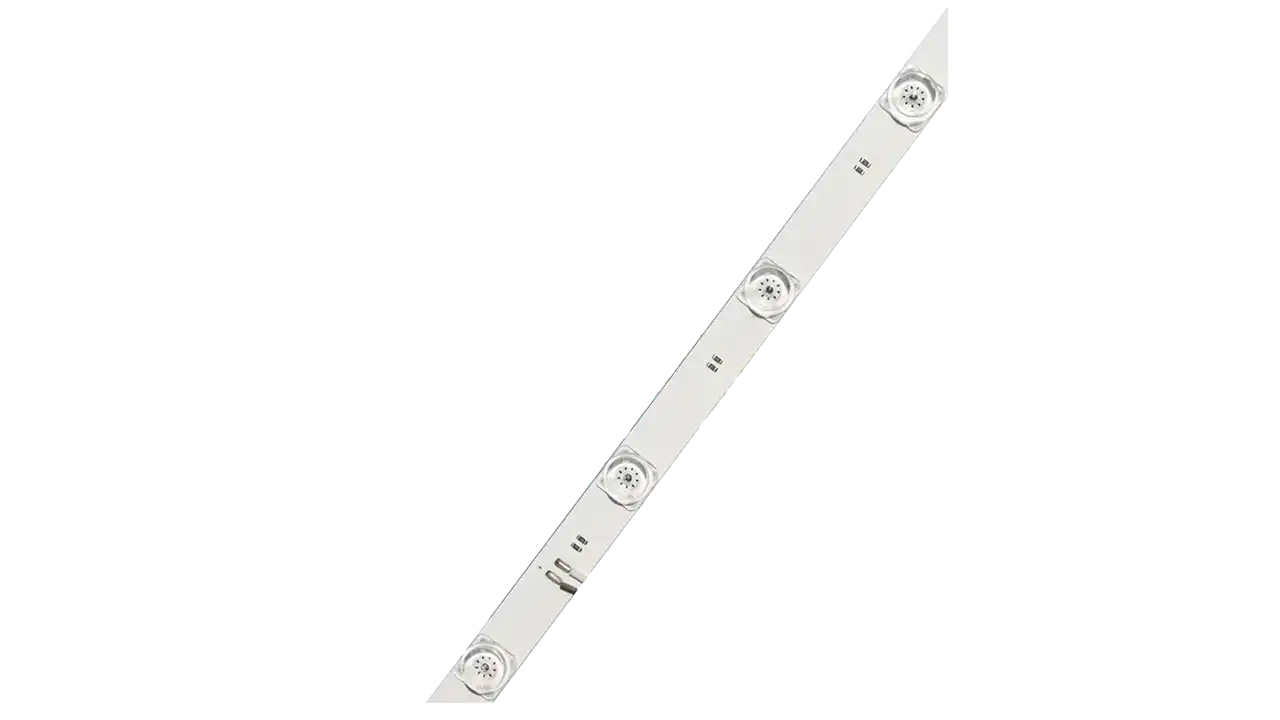

- Model: DT-D-12A
- V DC: 12V
- CT: 3000-11000K
- Lamp bead: SMD2835
- LEDs: 12 pcs
- Power: 14.4W
- Angle: ＜180°
- Level: IP20
- Lifetime: ＞3 years
- Size: 960*18*1MM
- Suitable for: The distance from the fabric > 2.5CM

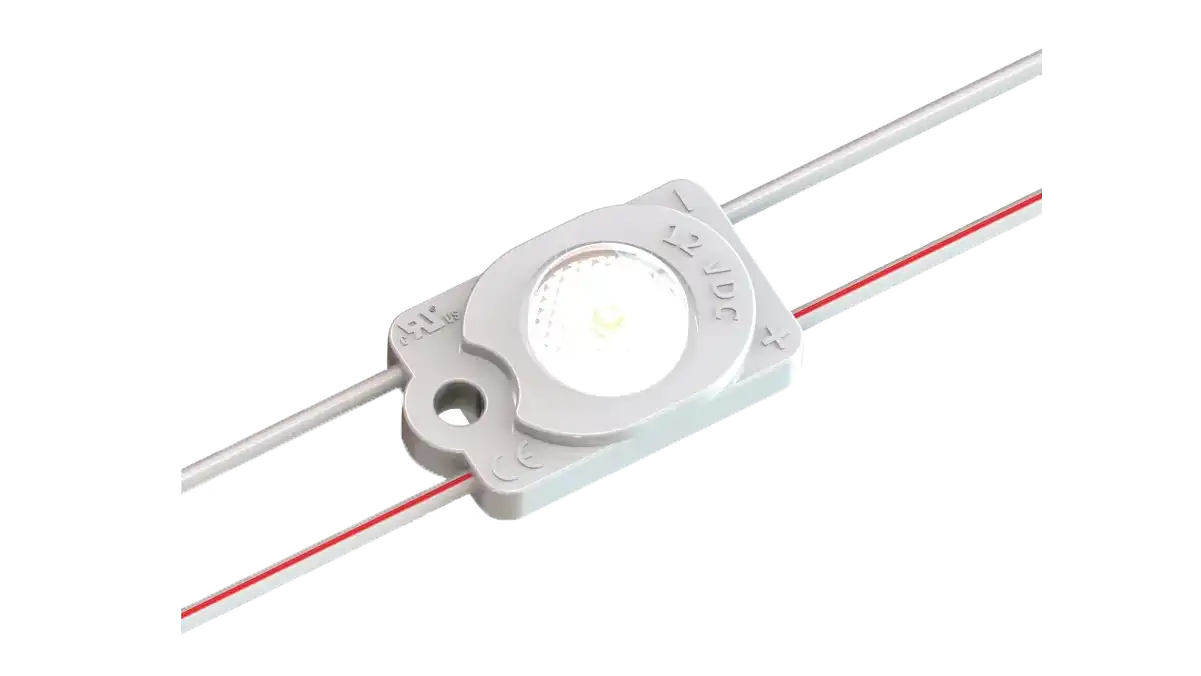

- Model: DT-M12-6705A
- V DC: 12V
- CT: 3000K/6000K/11000K
- Lamp bead: 2835
- Luminous: 77.5LM
- Power: 0.5W
- Angle: ＞175°
- Level: IP67
- Lifetime: ＞5 years
- Size: 30.3*18*9.4MM
- Suitable for: 30mm-250mm depth channel letters
- Model: DT-M12-6710A
- V DC: 12V
- CT: 3000K/6000K/11000K
- Lamp bead: 2835
- Luminous: 155LM
- Power: 1W
- Angle: ＞175°
- Level: IP67
- Lifetime: ＞5 years
- Size: 52*18*9.4MM
- Suitable for: 30mm-250mm depth channel letters

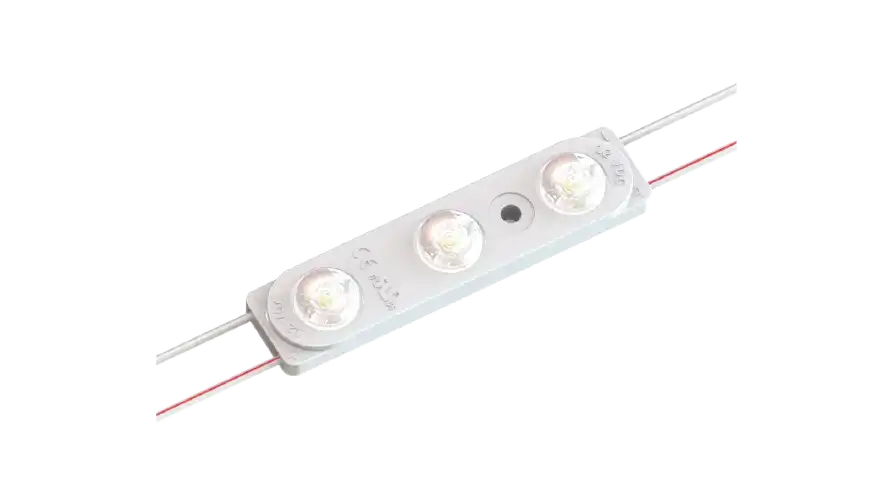

- Model: DT-M12-6715A
- V DC: 12V
- CT: 3000K/6000K/11000K
- Lamp bead: 2835
- Luminous: 232.5LM
- Power: 1.5W
- Angle: ＞175°
- Level: IP67
- Lifetime: ＞5 years
- Size: 78*18*9.4MM
- Suitable for: 30mm-250mm depth channel letters

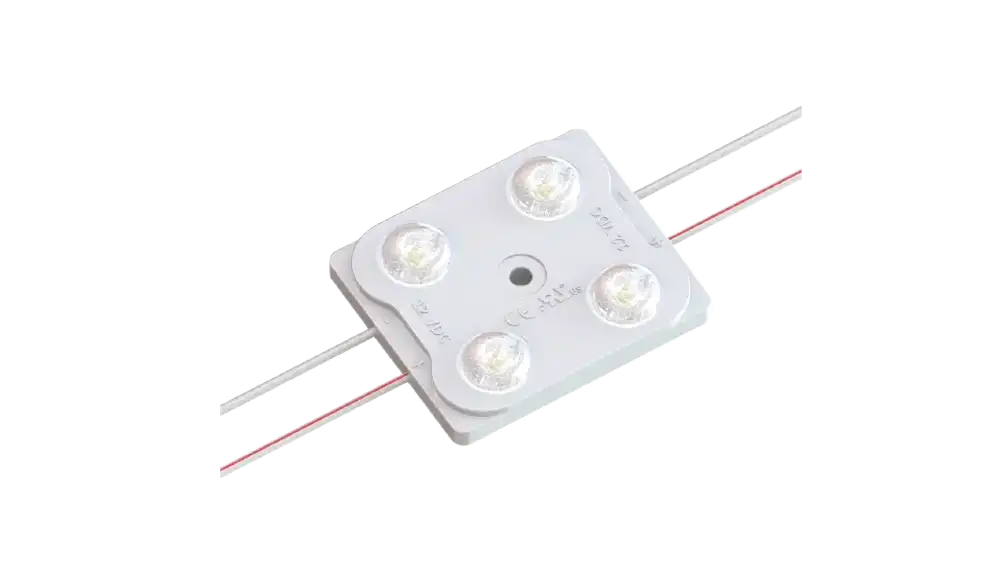

- Model: DT-M12-6720A
- V DC: 12V
- CT: 3000K/6000K/11000K
- Lamp bead: 2835
- Luminous: 310LM
- Power: 2W
- Angle: ＞175°
- Level: IP67
- Lifetime: ＞5 years
- Size: 52*44*9.4MM
- Suitable for: 30mm-250mm depth channel letters

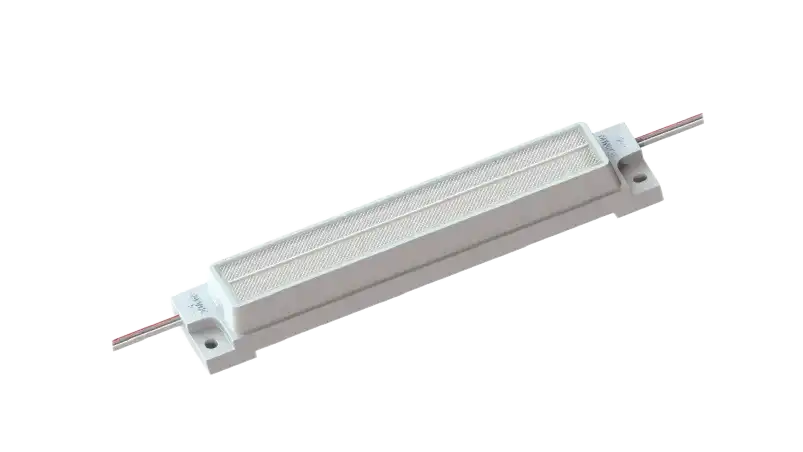

- Model: DT-M24-6772A
- V DC: 24V
- CT: 3000K/6000K/11000K
- Lamp bead: 3014
- Luminous: 800LM
- Power: 7.2W
- Angle: 11°x77°
- Level: IP67
- Lifetime: ＞7 years
- Size: 175*36*21.8MM
- Suitable for: Minimum depth: 120MM, Length: 2M-4M
